Peak Zone

Introduction

What is a Peak Zone?

A Peak Zone is a geospatial area where ride demand exceeds a configured threshold, triggering dynamic surge pricing. When enough rides are requested within a specific radius during a time window, the system automatically creates a peak zone to balance supply and demand through price adjustments.

Note: Peak zones are automatically generated and managed by the system based on real-time ride data. They help optimize driver distribution and manage demand during high-traffic periods.

How Peak Zones Work

The peak zone system operates through the following process:

1. Detection: The system continuously monitors ride requests within configurable radius areas
2. Threshold Check: When ride count exceeds the configured threshold within the analysis window
3. Zone Creation: Automatically generates a polygon zone with surge pricing
4. Pricing Application: Applies surge multiplier to base fares for rides originating in the zone
5. Zone Expiration: Peak zones automatically expire after the configured duration

Ride Requests → Analysis → Threshold Check → Peak Zone Creation → Surge Pricing → Zone Expiration


Configuring Parameters for Peak Zone Management

The peak zone system is controlled by several key parameters that can be configured in the admin panel:

Parameter	Description	Default Value
total_rides_in_peak_zone	Ride count threshold to trigger peak zone	10
peak_zone_geographic_radius	Detection radius in kilometers	2 km
minutes_choosing_peak_zone	Analysis time window in minutes	15 minutes
minutes_peak_zone_active	Duration peak zone remains active	60 minutes
peak_price_increase_percentage	Surge pricing multiplier percentage	20%

Important: All parameters must be positive values. Invalid values will be rejected by the system

Surge Pricing Calculation for Peak Zones

The peak zone surge pricing is calculated using the following formula:

Surge Charge = (Base Fare × Peak Price Increase Percentage) / 100
Final Fare = Base Fare + Surge Charge

Example calculation:

• Base Fare: $10.00
• Peak Price Increase: 20%
• Surge Charge: ($10.00 × 20) / 100 = $2.00
• Final Fare: $10.00 + $2.00 = $12.00

Technical Note: The system only considers rides with payment status 'COMPLETED' when calculating peak zones to ensure data accuracy.

Admin Panel Configuration

Editing a peak zone

Steps to Edit

1. Log in to the Admin Dashboard.

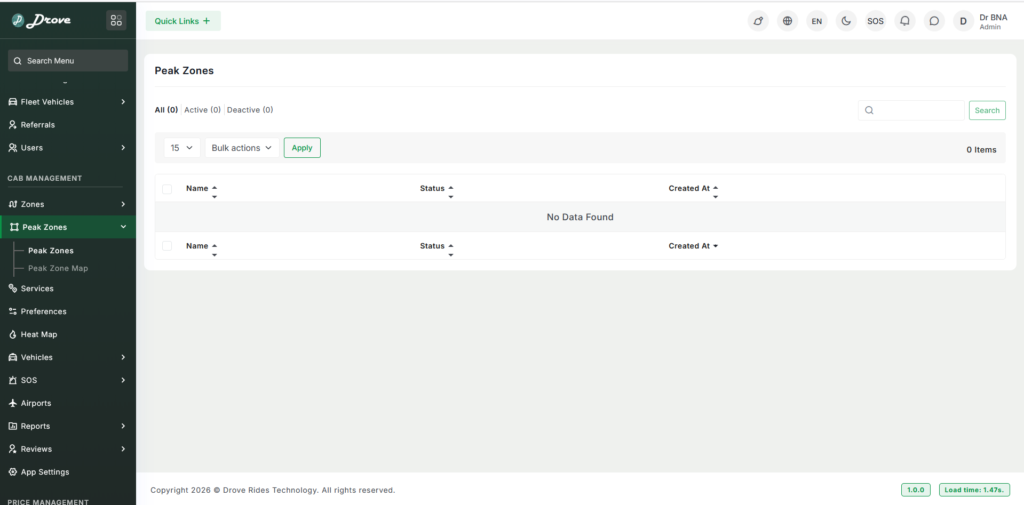

2. Navigate via the left‑sidebar: CAB MANAGEMENT → Peak Zones.
3. In the Peak Zones list, locate the zone you wish to edit and click the Edit button.
4. On the edit screen, you can modify the following parameters (change as needed):

• Peak Zone Name: Enter a unique name for the ride zone. The name should reflect the area covered by the zone, for example, “Downtown”, “North Side”, or “Airport Area”.
• Search Location — the time window in minutes during which ride requests are counted.
• Place Points: Place Points are automatically generated when you draw the boundary on the map. Mark key locations (Place Points) like pickup/drop-off points.
• Map: Use the map tool to draw the zone boundaries or enter the coordinates manually.
• Status: Enable or disable Zone.
• After making your updates, click Save (or similar) to apply the changes.

Note: Your configuration changes take effect immediately for any new Peak Zones that are triggered. Existing zones already active will continue under their previously set parameters.

Configuration Fields

• Total Rides in Peak Zone: Number of rides required to trigger a peak zone
• Peak Zone Geographic Radius: Radius in kilometers for ride analysis
• Minutes Choosing Peak Zone: Time window for ride counting
• Minutes Peak Zone Active: Duration the peak zone remains active
• Peak Price Increase Percentage: Surge pricing multiplier
